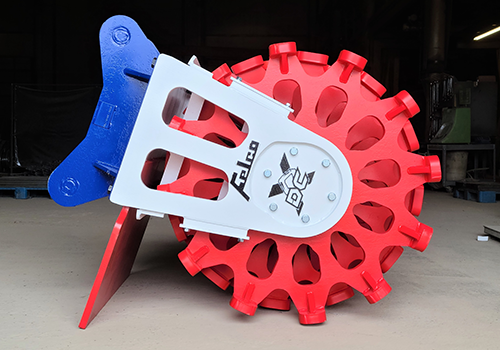

Segmented Wheel Compactors

Overview

Felco Segmented Wheel Compactors combine traditional soil penetrating rims with our proven Sealed Journal Bearing (SJB) System. Protected within our rigid exterior frame, the maintenance-free design (no greasing) provides superior performance and less downtime due to its ability to withstand heavy use and is supported by an industry best FIVE-YEAR LIMITED WARRANTY.

Bi-directional scraper teeth assemblies remove excess material between the segments, and the replaceable dirt teeth are a standard size and available from most dealers.

Bolt-On Ear Assemblies are standard with each wheel compactor – which allows use on other similar class excavators with different ear dimensions by purchasing an additional bolt-on ear assembly from Felco.

Specifications

Machine Weight (lbs.)	Standard Size Width” x Diam.”	Number of Rims	Est. Weight (lbs.)	Sealed Journal Bearing (SJB)
45,000 – 60,000
	24 x 35	3	2,400	SJB – E
	36 x 35	4	3,300	SJB – H
60,000 – 100,000
	24 x 44	3	3,210	SJB – E
	36 x 44	4	4,150	SJB – H
	48 x 44	5	5,130	SJB – H

Options

Linkage Pins

Available from 40mm to 130mm diameters

linkage pins

Bolt-On Leveling Blades

Felco Bolt-On Leveling blades can be mount on either side of the ear assembly, depending on how an operator prefers to push/pull material into the trench.
leveling blade diagram

Replaceable Scraper Teeth / Adapters

Worn scraper teeth are easy to remove and replace. Scraper teeth keep the wheel clean and will improve the performance of your compaction attachment.

Replaceable Scraper Teeth / Adapters for Tamping Pad Wheel

Bolt-On Ear Assemblies

Bolt-On Ear Assemblies are standard with each full size wheel compactor – which allows use on other similar class excavators with different ear dimensions by purchasing an additional bolt-on ear assembly from Felco.

Please provide the serial # on the Wheel Compactor which is located between the current set of ears, and the Make / Model of the excavator that you want the new ears to mount on.

To confirm ear dimensions, please click on this Ear Dimensions Confirmation Sheet.

BOLT-ON Replacement Ear Assemblies
