Overview

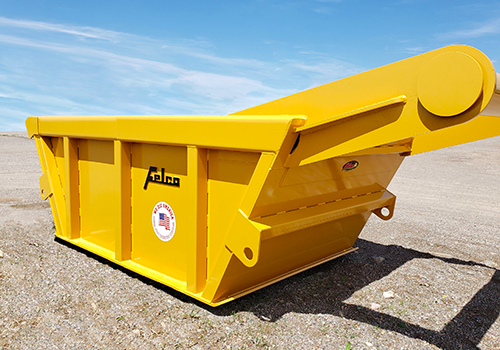

Felco Bedding Boxes are an exceptional solution for your backfill material management needs. Made in Montana, Felco Bedding Boxes are strong, durable, and made to endure hard use on the construction site. All boxes feature a “rolling grab bar” system which helps prevent the grab bar from bending from repeatedly pulling on the bar in the same static position.
A Doubling Plate is added to reinforce each box where teeth hit the outer wall when lifting / moving the box with the excavator.
Please see our Felco Bedding Box SPECIFICATIONS below. Our steel dimensions typically exceed our competitor’s thicknesses in key areas.
Custom designs and modifications are welcome.
Specifications
Options
Specifications
| Capacity | Standard Size*
L’ x W’ x H’ | Side Wall | End Wall | Base | Grab Bar | Est. Weight (lbs.) |
| 2 CY** | 8’3” x 4’0″ x 3’0” | 1/4” | 3/8” | 1/2” | 5” SCH80 | 2,340 |
| 3 CY** | 10’ x 4’9″ x 3’6” | 1/4” | 3/8” | 1/2” | 5” SCH80 | 2,730 |
| 4 CY | 12’ x 5’0″ x 3’6” | 1/4” | 3/8” | 5/8” | 5” SCH80 | 3,206 |
| 5 CY | 13’6” x 5’4” x 3’6” | 1/4″ | 3/8” | 5/8” | 6” SCH80 | 3,975 |
| 7 CY | 14’6” x 5’9” x 4’0” | 1/4” | 3/8” | 5/8” | 8” SCH80 | 5,100 |
| 7 CY Wide | 13’11” x 6’6” x 4’0” | 1/4” | 3/8” | 5/8” | 8” SCH80 | 5,400 |
| 9 CY | 15’6” x 6’7” x 4’0” | 1/4” | 3/8” | 5/8” | 8” SCH80 | 5,990 |
| 10 CY | 16’6” x 6’7” x 4’0” | 1/4” | 3/8” | 5/8” | 8” SCH80 | 6,150 |
| 10 CY HD | 16’6” x 6’7” x 4’0” | 1/2” | 1/2” | 3/4” | 8” SCH120 | 7,550 |
| 12 CY HD | 18’6” x 7’2” x 4’0” | 1/2″ | 1/2” | 3/4” | 8” SCH120 | 8,700 |
| 15 CY HD | 19’ x 8’0” x 4’0” | 1/2” | 1/2” | 3/4” | 8” SCH120 | 12,800 |
All our bedding boxes feature a “rolling grab bar” system
*Outer Box dimensions – please request a unit line drawing for inside dimensions
**Includes Universal Skid Steer Adapters on Each Side of Box
Options
Custom Paint
Our standard paint color is construction yellow, but please ask about our custom paint capabilities.
Pull plate on opposite end of Grab Bar
Plating to protect welds between the End Walls and the Base Plate
